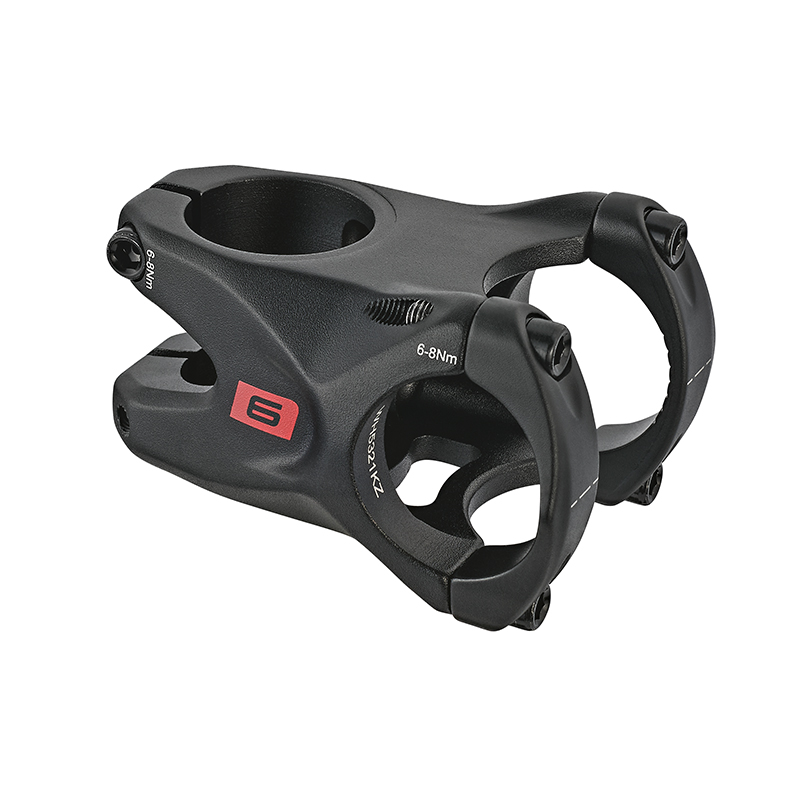

The ergotec BASS SM 31.8 is designed for use with the Flat Bar SM and Low Riser Bar SM. In combination with these handlebars, the SUPERNOVA STARSTREAM MINI headlight can be integrated into the cockpit system. Cable routing beneath the stem body and through the headset helps create a clean cockpit appearance. Made from AL 6061 T6 aluminium, the stem has a 45 mm extension and a 0° angle. Its geometry is therefore designed for a sporty handlebar position. The BASS SM features a 31.8 mm handlebar clamp diameter and is rated at ergotec Safety Level 6. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | clamp height | more | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 40561301 |  |
31,8 mm | AL 6061 T6 | 28,6 mm | 45 mm | 40 mm | |||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
