Stems > Ahead stem

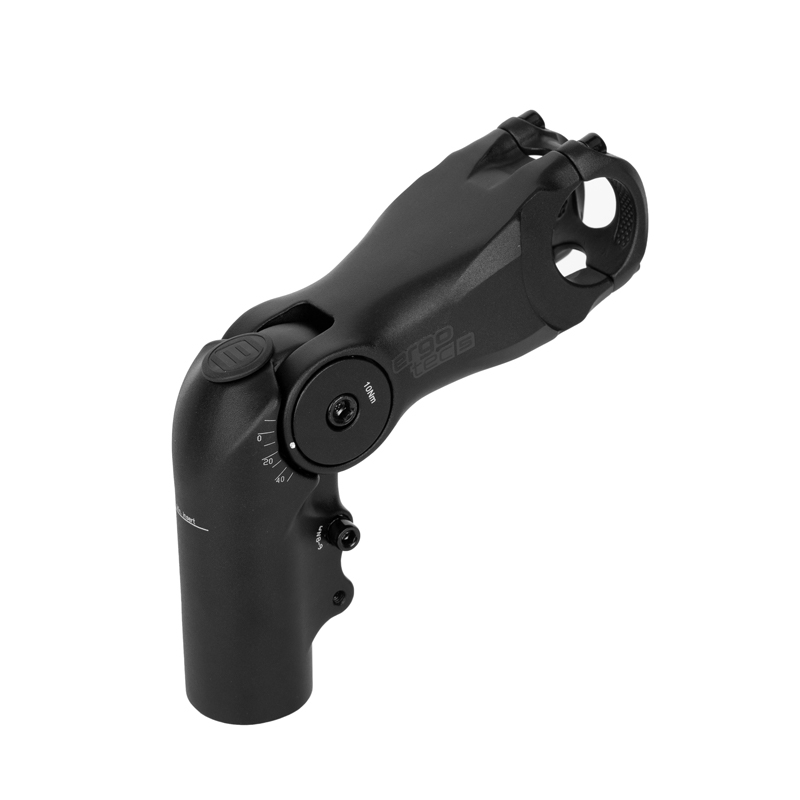

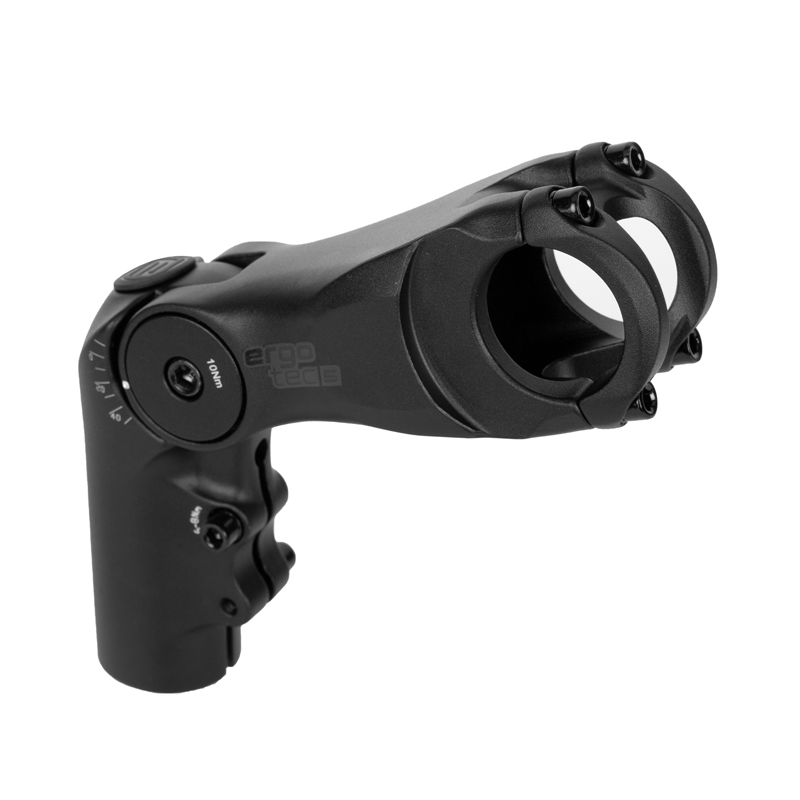

Integra-B 2.0/ 31,8

Stable, angle adjustable Ahaed stem. The special shape of the stem provides a nice transition to the BOSCH Nyon holder and makes the cockpit look tidy. The additional elevation provides a more upright seating position, which is an advantage on long trips.


Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40280101 31,8 mm AL 6061 T6 28,6 mm 110 mm 62 mm
Artikel-Nr.: 40280101 clamp: 31,8 mm
safety level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 62 mm angle: -10 - +40°
actual height gain: 45/60/120 actual length gain: 105/110/85
finish: black sandblasted weight: ~467g
EAN: 4016538114719 RRP: 98,90€
Zu diesem Vorbau passende Lenker anzeigen: City./ Trekking-Bike Lenker >> E-Bike Lenker >> Mountain-Bike Lenker >> Holland-Lenker >> Verstellbare-Lenker >>

Keep the Safety Level. Please mark the product and all to your Safety Level fitting products will be shown. At same time the marked product will be put on your watchlist.
