Cat/ 25,4

The ergotec CAT 25.4 is a classically styled quill stem with a single-bolt handlebar clamp and a 25.4 mm handlebar clamp diameter. The construction combines a steel quill with an aluminium stem body. The stem has a 40 mm extension and a 30° angle. Depending on the version, it is available with different quill lengths and with a quill diameter of 22.2 or 25.4 mm. The CAT 25.4 is rated at ergotec Safety Level 2.

>>

Artikel-Nr. safety level clamp material fork clamp extension quill length more

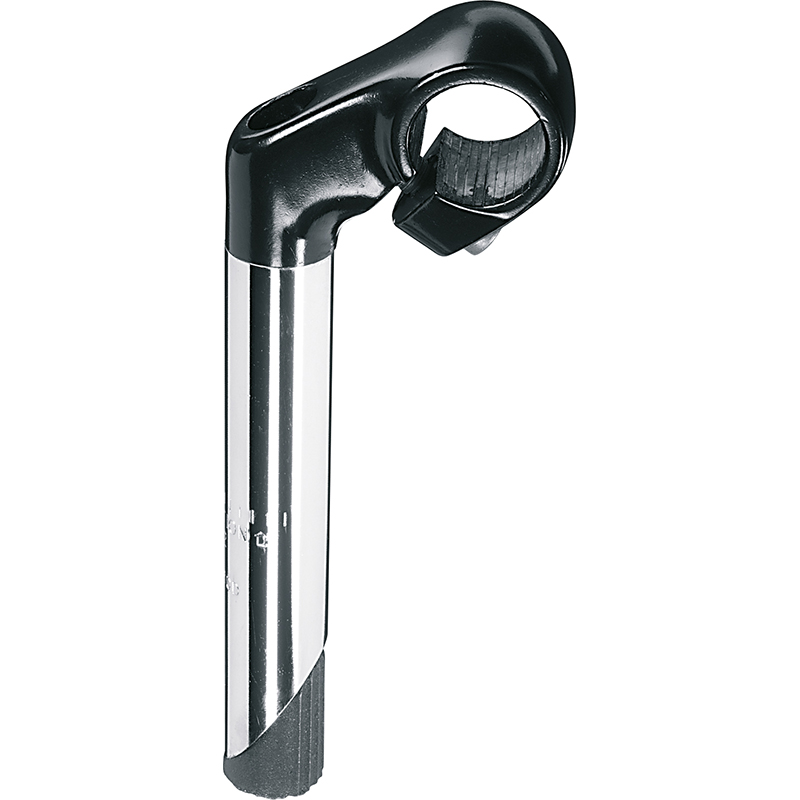

add to notes 38100001 25,4 mm Steel/ AL 356 22,2 mm 40 mm 150 mm
Artikel-Nr.: 38100001 clamp: 25,4 mm
safety level 2 material: Steel/ AL 356
fork clamp: 22,2 mm extension: 40 mm
quill length: 150 mm angle: 30°
actual height gain: 75 actual length gain: 35
finish: black/ silver weight: ~296 g
EAN: 4016538094851 RRP: 17,95€
add to notes 38101001 25,4 mm Steel/ AL 356 22,2 mm 40 mm 150 mm
Artikel-Nr.: 38101001 clamp: 25,4 mm
safety Level 2 material: Steel/ AL 356
fork clamp: 22,2 mm extension: 40 mm
quill length: 150 mm angle: 30°
actual height gain: 75 actual length gain: 35
finish: silver weight: ~290 g
EAN: 4016538094875 RRP: 17,95€
add to notes 38120001 25,4 mm Steel/ AL 356 22,2 mm 40 mm 200 mm
Artikel-Nr.: 38120001 clamp: 25,4 mm
safety Level 2 material: Steel/ AL 356
fork clamp: 22,2 mm extension: 40 mm
quill length: 200 mm angle: 30°
actual height gain: 125 actual length gain: 35
finish: black/ silver weight: ~346 g
EAN: 4016538080021 RRP: 17,95€

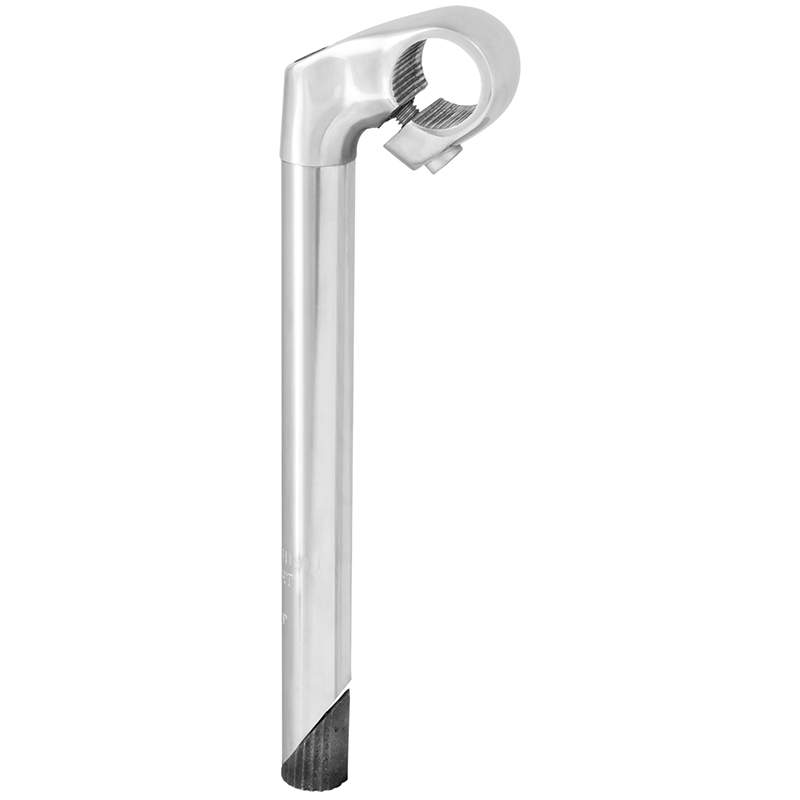

add to notes 38135001 25,4 mm Steel/ AL 356 22,2 mm 40 mm 230 mm
Artikel-Nr.: 38135001 clamp: 25,4 mm
safety Level 2 material: Steel/ AL 356
fork clamp: 22,2 mm extension: 40 mm
quill length: 230 mm angle: 30°
actual height gain: 155 actual length gain: 35
finish: silver weight: ~382 g
EAN: 4016538094899 RRP: 19,95€
add to notes 38140001 25,4 mm Steel/ AL 356 22,2 mm 40 mm 230 mm
Artikel-Nr.: 38140001 clamp: 25,4 mm
safety Level 2 material: Steel/ AL 356
fork clamp: 22,2 mm extension: 40 mm
quill length: 230 mm angle: 30°
actual height gain: 155 actual length gain: 35
finish: black/ silver weight: ~386 g
EAN: 4016538082674 RRP: 19,95€
add to notes 38102001 25,4 mm Steel/ AL 356 25,4 mm 40 mm 150 mm
Artikel-Nr.: 38102001 clamp: 25,4 mm
safety Level 2 material: Steel/ AL 356
fork clamp: 25,4 mm extension: 40 mm
quill length: 150 mm angle: 30°
actual height gain: 75 actual length gain: 35
finish: black/ silver weight: ~342 g
EAN: 4016538093991 RRP: 17,95€
