Kobra Vario Tube/ 25,4

The ergotec KOBRA VARIO TUBE combines a stainless-steel quill with components made from AL 356 T6 aluminium. The three-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. The angle can be adjusted from −10° to +50°, allowing the handlebar position to be adapted as required. The stem is available with extensions of 90 or 110 mm and with quill lengths of 230 or 300 mm. Depending on the version, it is designed for a steerer tube diameter of 22.2 or 25.4 mm. The KOBRA VARIO TUBE is rated at ergotec Safety Level 2. Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension quill length more

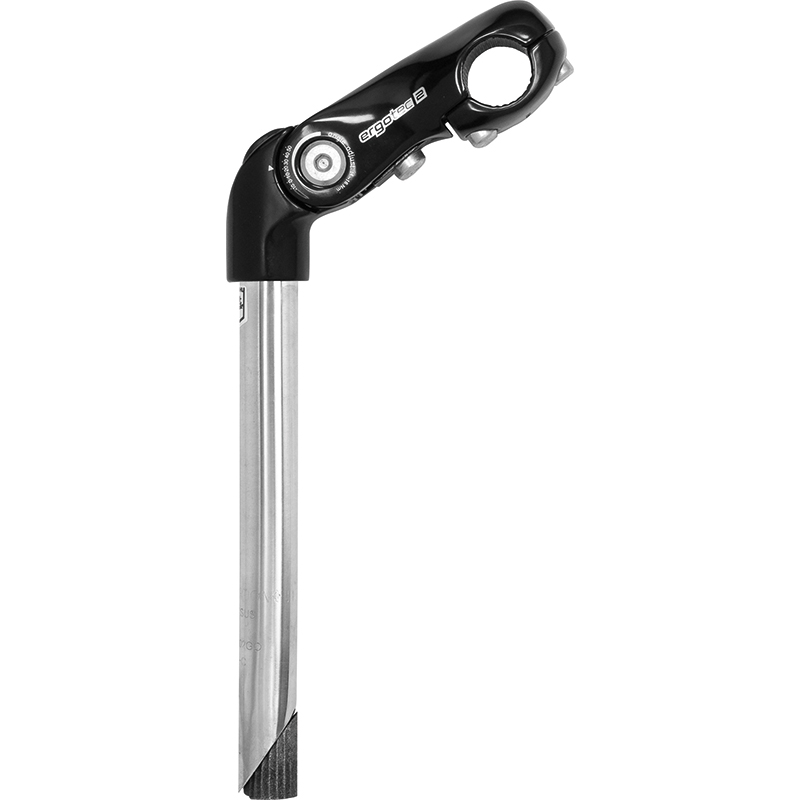

add to notes 33681001 25,4 mm Stainless/ AL 356 22,2 mm 90 mm 230 mm
Artikel-Nr.: 33681001 clamp: 25,4 mm
safety level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 230 mm angle: -10 - +50°
actual height gain: 140/155/210 actual length gain: 85/90/70
finish: black/ silver weight: ~638 g
EAN: 4016538093588 RRP: 43,95€
add to notes 33682001 25,4 mm Stainless/ AL 356 22,2 mm 110 mm 230 mm
Artikel-Nr.: 33682001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 110 mm
quill length: 230 mm angle: -10 - +50°
actual height gain: 130/155/230 actual length gain: 105/110/90
finish: silver weight: ~660 g
EAN: 4016538094721 RRP: 43,95€
add to notes 33684001 25,4 mm Stainless/ AL 356 22,2 mm 90 mm 300 mm
Artikel-Nr.: 33684001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/195/250 actual length gain: 85/90/70
finish: silver weight: ~762 g
EAN: 4016538087044 RRP: 46,95€
add to notes 33685001 25,4 mm Stainless/ AL 356 22,2 mm 90 mm 300 mm
Artikel-Nr.: 33685001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/195/250 actual length gain: 85/90/70
finish: black/ silver weight: ~768 g
EAN: 4016538094257 RRP: 46,95€
add to notes 33710001 25,4 mm Stainless/ AL 356 22,2 mm 90 mm 300 mm
Artikel-Nr.: 33710001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/195/250 actual length gain: 85/90/70
finish: black sandblasted/ silver weight: ~770 g
EAN: 4016538081752 RRP: 46,95€
add to notes 33686001 25,4 mm Stainless/ AL 356 22,2 mm 110 mm 300 mm
Artikel-Nr.: 33686001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 110 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/200/260 actual length gain: 105/110/90
finish: silver weight: ~792 g
EAN: 4016538082445 RRP: 46,95€
add to notes 33687001 25,4 mm Stainless/ AL 356 22,2 mm 110 mm 300 mm
Artikel-Nr.: 33687001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 22,2 mm extension: 110 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/200/260 actual length gain: 105/110/90
finish: black/ silver weight: ~735 g
EAN: 4016538084333 RRP: 46,95€
add to notes 33701001 25,4 mm Stainless/ AL 356 25,4 mm 90 mm 230 mm
Artikel-Nr.: 33701001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 90 mm
quill length: 230 mm angle: -10 - +50°
actual height gain: 140/155/210 actual length gain: 85/90/70
finish: black/ silver weight: ~660 g
EAN: 4016538094745 RRP: 46,95€
add to notes 33713001 25,4 mm Stainless/ AL 356 25,4 mm 110 mm 230 mm
Artikel-Nr.: 33713001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 230 mm angle: -10 - +50°
actual height gain: 130/155/230 actual length gain: 105/110/90
finish: black sandblasted/ silver weight: ~696 g
EAN: 4016538094806 RRP: 43,95€
add to notes 33704001 25,4 mm Stainless/ AL 356 25,4 mm 90 mm 300 mm
Artikel-Nr.: 33704001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 90 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/195/250 actual length gain: 85/90/70
finish: silver weight: ~736 g
EAN: 4016538081738 RRP: 46,95€
add to notes 33705001 25,4 mm Stainless/ AL 356 25,4 mm 90 mm 300 mm
Artikel-Nr.: 33705001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 90 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/195/250 actual length gain: 85/90/70
finish: black/ silver weight: ~742 g
EAN: 4016538094776 RRP: 46,95€

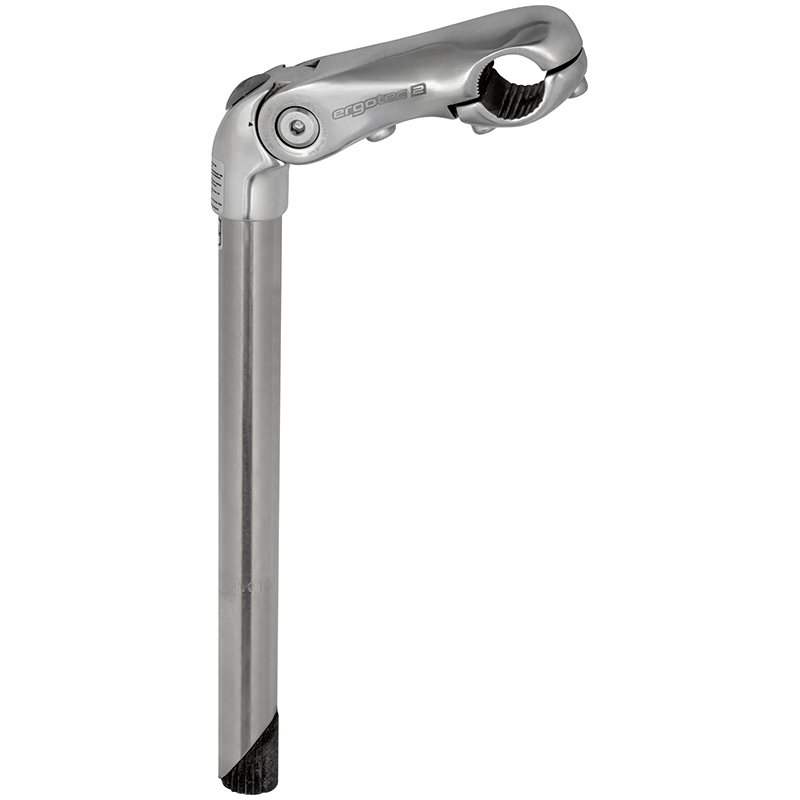

add to notes 33706001 25,4 mm Stainless/ AL 356 25,4 mm 110 mm 300 mm
Artikel-Nr.: 33706001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/200/260 actual length gain: 105/110/90
finish: silver weight: ~770 g
EAN: 4016538089031 RRP: 46,95€
add to notes 33707001 25,4 mm Stainless/ AL 356 25,4 mm 110 mm 300 mm
Artikel-Nr.: 33707001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/200/260 actual length gain: 105/110/90
finish: black/ silver weight: ~775 g
EAN: 4016538084340 RRP: 46,95€
add to notes 33715001 25,4 mm Stainless/ AL 356 25,4 mm 110 mm 300 mm
Artikel-Nr.: 33715001 clamp: 25,4 mm
safety Level 2 material: Stainless/ AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 300 mm angle: -10 - +50°
actual height gain: 180/200/260 actual length gain: 105/110/90
finish: black sandblasted/ silver weight: ~770 g
EAN: 4016538081813 RRP: 46,95€
