High Charisma/ 31,8

The ergotec HIGH CHARISMA 31.8 is a 3D-forged aluminium Ahead stem with a four-bolt handlebar clamp and closed steerer tube clamp. Its angled design supports a higher cockpit position. The stem is made from AL 6061 T6 aluminium and is rated at ergotec Safety Level 5. The 50 mm version has a 35° angle, while the 90, 110 and 130 mm versions feature a 45° angle. For the 90, 110 and 130 mm versions, an optional faceplate allows compatible headlights or mini cameras to be mounted on the front of the stem. >>Stem accessories Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40130701 31,8 mm AL 6061 T6 28,6 mm 50 mm 40 mm
Artikel-Nr.: 40130701 clamp: 31,8 mm
safety level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 50 mm
clamp height: 40 mm angle: 35°
actual height gain: 45 actual length gain: 40
finish: black sandblasted weight: ~172 g
EAN: 4016538110865 RRP: 43,95€
add to notes 40130711 31,8 mm AL 6061 T6 28,6 mm 50 mm 40 mm
Artikel-Nr.: 40130711 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 50 mm
clamp height: 40 mm angle: 35°
actual height gain: 45 actual length gain: 40
finish: silver polish weight: ~180 g
EAN: 4016538110872 RRP: 47,95€

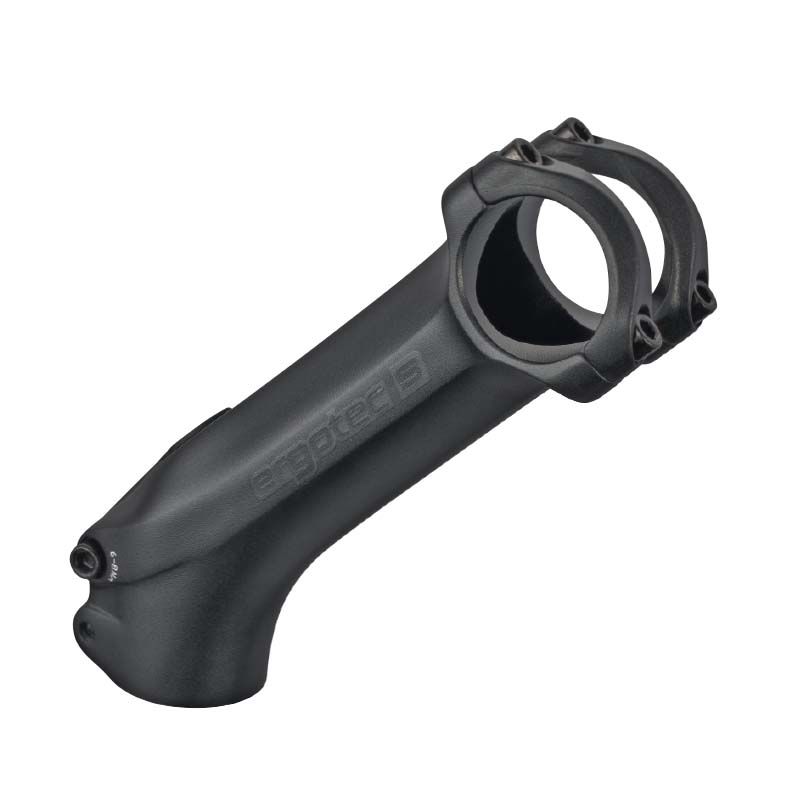

add to notes 40131001 31,8 mm AL 6061 T6 28,6 mm 90 mm 40 mm
Artikel-Nr.: 40131001 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 40 mm angle: 45°
actual height gain: 80 actual length gain: 60
finish: black sandblasted weight: ~204 g
EAN: 4016538071975 RRP: 43,95€
add to notes 40131101 31,8 mm AL 6061 T6 28,6 mm 90 mm 40 mm
Artikel-Nr.: 40131101 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 40 mm angle: 45°
actual height gain: 80 actual length gain: 60
finish: silver polish weight: ~202 g
EAN: 4016538090594 RRP: 47,95€
add to notes 40136001 31,8 mm AL 6061 T6 28,6 mm 110 mm 40 mm
Artikel-Nr.: 40136001 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 40 mm angle: 45°
actual height gain: 90 actual length gain: 75
finish: black sandblasted weight: ~202 g
EAN: 4016538071982 RRP: 43,95€

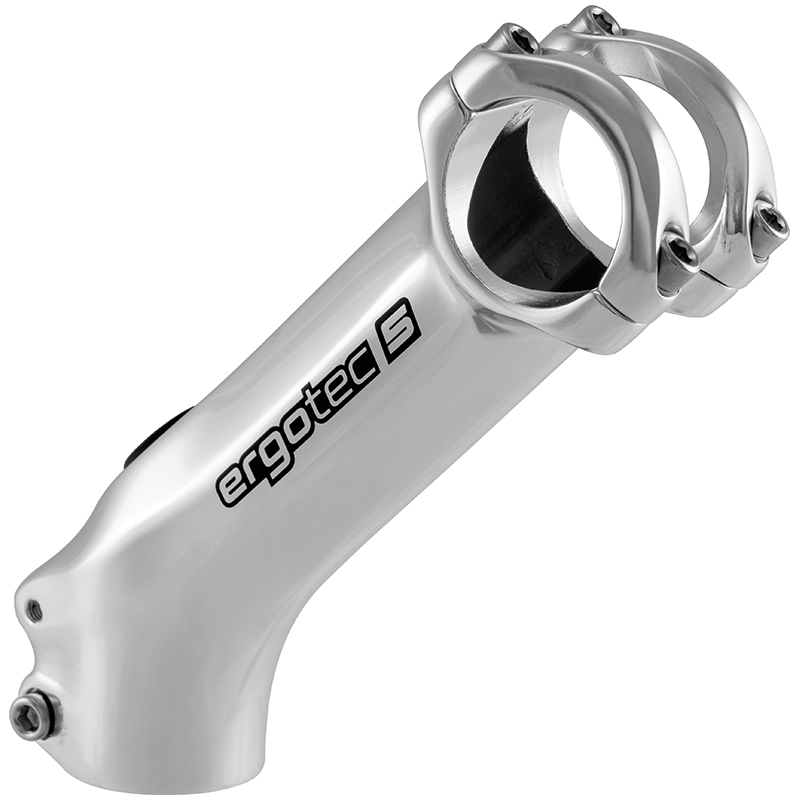

add to notes 40136101 31,8 mm AL 6061 T6 28,6 mm 110 mm 40 mm
Artikel-Nr.: 40136101 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 40 mm angle: 45°
actual height gain: 90 actual length gain: 75
finish: silver polish weight: ~204 g
EAN: 4016538090617 RRP: 47,95€
add to notes 40132001 31,8 mm AL 6061 T6 28,6 mm 130 mm 40 mm
Artikel-Nr.: 40132001 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 130 mm
clamp height: 40 mm angle: 45°
actual height gain: 105 actual length gain: 95
finish: black sandblasted weight: ~222 g
EAN: 4016538103607 RRP: 43,95€
