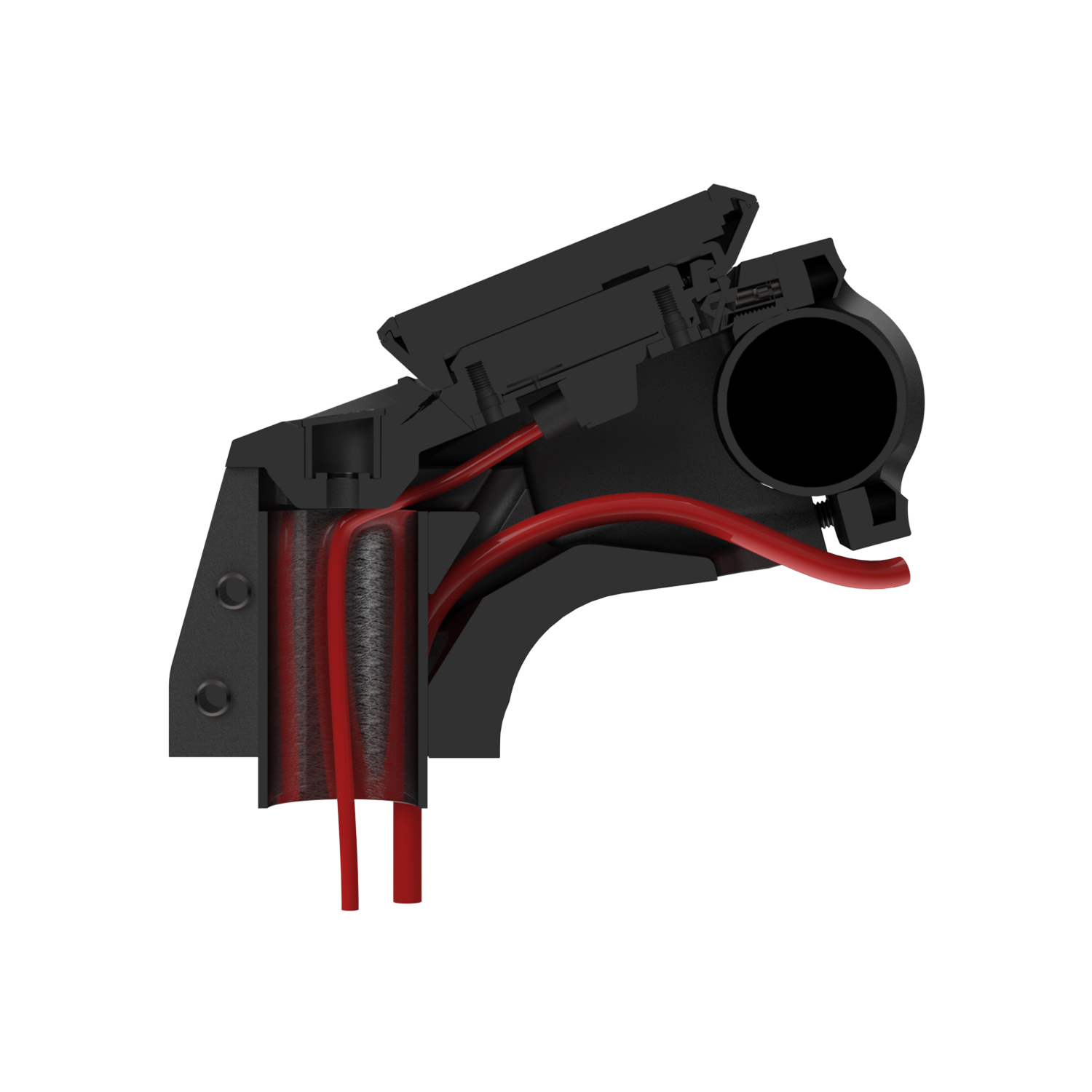

Fully integrated cable routing for a clean cockpit The ergotec INTEGRA PERFORMANCE C-A 31.8 is an Ahead stem with integrated cable routing through the stem body, headset and steerer tube. It is designed for use with compatible headset systems from ACROS and TOKEN. The INTEGRA PERFORMANCE C-A shares its basic design with the INTEGRA PERFORMANCE BK-A. Its cover cap can be replaced with the optional BK-A display mount for Bosch Kiox 300/500 displays. Conversely, the display mount can be replaced with the C-A cover cap. The stem is made from AL 6061 T6 aluminium, features a 31.8 mm handlebar clamp diameter and is rated at ergotec Safety Level 6. An optional faceplate allows a compatible headlight to be mounted on the front of the stem. Installation and safety information: A suitable threaded star nut is required for routing the cables through the steerer tube. The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | clamp height | more | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 40286211 |  |
31,8 mm | AL 6061 T6 | 28,6 mm | 85 mm | 40 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
