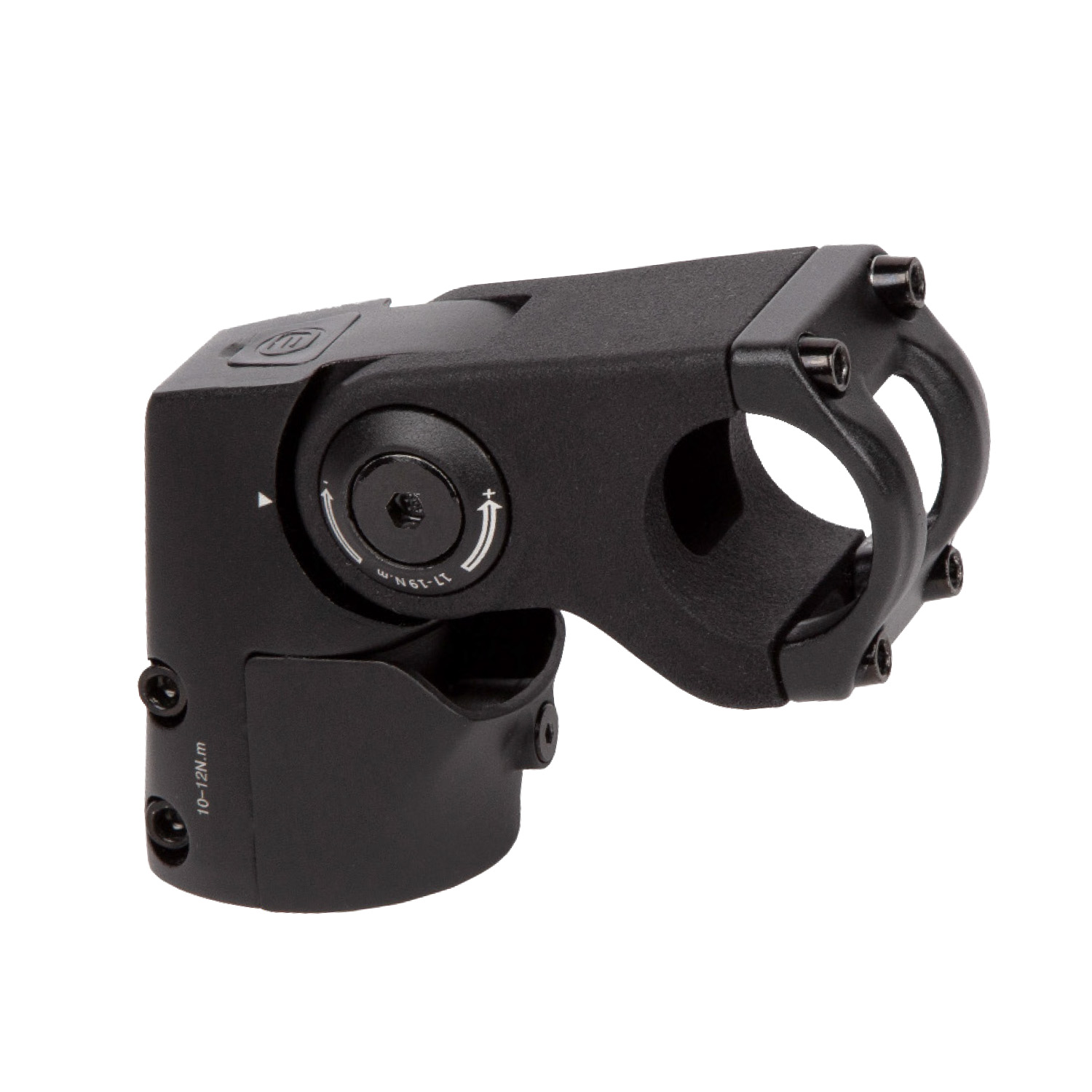

Sepia Ahead 50 XL i 31,8

Angle adjustment with semi-integrated cable routing The ergotec SEPIA AHEAD 50 XL i 31.8 is an angle-adjustable Ahead stem with a 70 mm extension. The stem angle can be adjusted from 0° to +60°, allowing the handlebar position to be adapted to the desired riding position. Its raised design can support a higher handlebar position and therefore a more upright riding position. The actual riding position also depends on the frame geometry, the handlebar used and the individual setup. Cables and lines can be routed beneath the stem body and through the headset. This semi-integrated cable routing helps create a clean cockpit appearance. The stem is designed for use with compatible headset systems from ACROS and TOKEN. The SEPIA AHEAD 50 XL i is made from AL 6061 T6 aluminium, features a 31.8 mm handlebar clamp diameter and is rated at ergotec Safety Level 5. It has a black sandblasted finish. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40049201 31,8 mm AL 6061 T6 28,6 mm 70 mm 40 mm
Artikel-Nr.: 40049201 clamp: 31,8 mm
safety level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 70 mm
clamp height: 40 mm angle: -0/ +60°
actual height gain: 20/60 actual length gain: 70/50
finish: black sandblasted weight: ~386g
EAN: 4016538119448 RRP: 71,95€
