Kobra Vario Ahead/ 25,4

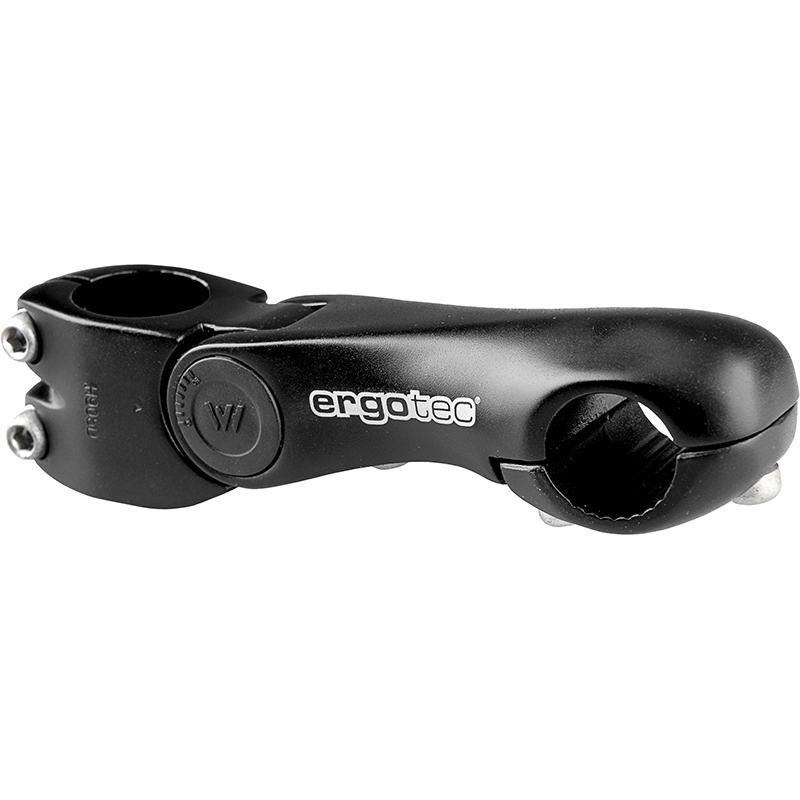

The ergotec KOBRA VARIO AHEAD is an angle-adjustable aluminium Ahead stem made from AL 356 T6. The three-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. The stem is rated at ergotec Safety Level 3. The adjustment range from −10° to +50° allows the handlebar height and position to be adapted individually. Depending on the selected setting, the stem can support either a sportier or a more upright riding position. The KOBRA VARIO AHEAD is available with an extension of 100 or 120 mm. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40066001 25,4 mm AL 356 28,6 mm 100 mm 40 mm
Artikel-Nr.: 40066001 clamp: 25,4 mm
safety level 3 material: AL 356
fork clamp: 28,6 mm extension: 100 mm
clamp height: 40 mm angle: -10 - +50°
actual height gain: -10/10/60 actual length gain: 95/100/80
finish: black weight: ~420 g
EAN: 4016538083138 RRP: 29,95€
add to notes 40067001 25,4 mm AL 356 28,6 mm 100 mm 40 mm
Artikel-Nr.: 40067001 clamp: 25,4 mm
safety Level 3 material: AL 356
fork clamp: 28,6 mm extension: 100 mm
clamp height: 40 mm angle: -10 - +50°
actual height gain: -10/10/60 actual length gain: 95/100/80
finish: black sandblasted weight: ~428 g
EAN: 4016538080151 RRP: 29,95€
add to notes 40071001 25,4 mm AL 356 28,6 mm 120 mm 40 mm
Artikel-Nr.: 40071001 clamp: 25,4 mm
safety Level 3 material: AL 356
fork clamp: 28,6 mm extension: 120 mm
clamp height: 40 mm angle: -10 - +50°
actual height gain: -10/10/75 actual length gain: 115/120/75
finish: black weight: ~460 g
EAN: 4016538087457 RRP: 29,95€
add to notes 40072001 25,4 mm AL 356 28,6 mm 120 mm 40 mm
Artikel-Nr.: 40072001 clamp: 25,4 mm
safety Level 3 material: AL 356
fork clamp: 28,6 mm extension: 120 mm
clamp height: 40 mm angle: -10 - +50°
actual height gain: -10/10/75 actual length gain: 115/120/75
finish: black sandblasted weight: ~458 g
EAN: 4016538083152 RRP: 29,95€
