High Pike 2/ 25,4

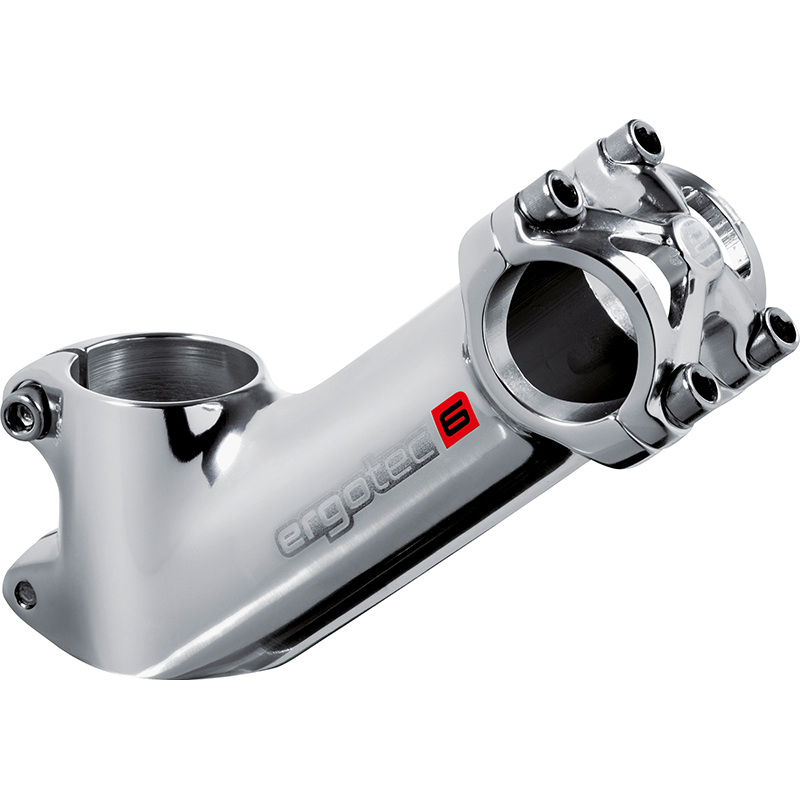

The ergotec HIGH PIKE 2 is an Ahead stem made from 3D-forged AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. Rated at ergotec Safety Level 6, the stem is intended for the applications approved for this rating. The fixed 40° angle raises the handlebar position and can therefore support a more upright riding position. Depending on the bicycle geometry and the selected extension length, this allows a more comfort-oriented cockpit setup. The HIGH PIKE 2 is available with extensions of 80, 100 or 120 mm. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40535001 25,4 mm AL 6061 T6 28,6 mm 80 mm 45 mm
Artikel-Nr.: 40535001 clamp: 25,4 mm
safety level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 80 mm
clamp height: 45 mm angle: 40°
actual height gain: 30 actual length gain: 60
finish: black sandblasted weight: ~140 g
EAN: 4016538024940 RRP: 44,95€
add to notes 40542001 25,4 mm AL 6061 T6 28,6 mm 100 mm 45 mm
Artikel-Nr.: 40542001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 100 mm
clamp height: 45 mm angle: 40°
actual height gain: 50 actual length gain: 75
finish: silver polish weight: ~154 g
EAN: 4016538073191 RRP: 45,95€
add to notes 40537001 25,4 mm AL 6061 T6 28,6 mm 100 mm 45 mm
Artikel-Nr.: 40537001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 100 mm
clamp height: 45 mm angle: 40°
actual height gain: 50 actual length gain: 75
finish: black sandblasted weight: ~180 g
EAN: 4016538024964 RRP: 44,95€
add to notes 40543001 25,4 mm AL 6061 T6 28,6 mm 120 mm 45 mm
Artikel-Nr.: 40543001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 120 mm
clamp height: 45 mm angle: 40°
actual height gain: 60 actual length gain: 90
finish: silver polish weight: ~170 g
EAN: 4016538073207 RRP: 45,95€
add to notes 40539001 25,4 mm AL 6061 T6 28,6 mm 120 mm 45 mm
Artikel-Nr.: 40539001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 120 mm
clamp height: 45 mm angle: 40°
actual height gain: 60 actual length gain: 90
finish: black sandblasted weight: ~200 g
EAN: 4016538024995 RRP: 44,95€
