Swell-RE/ 31,8

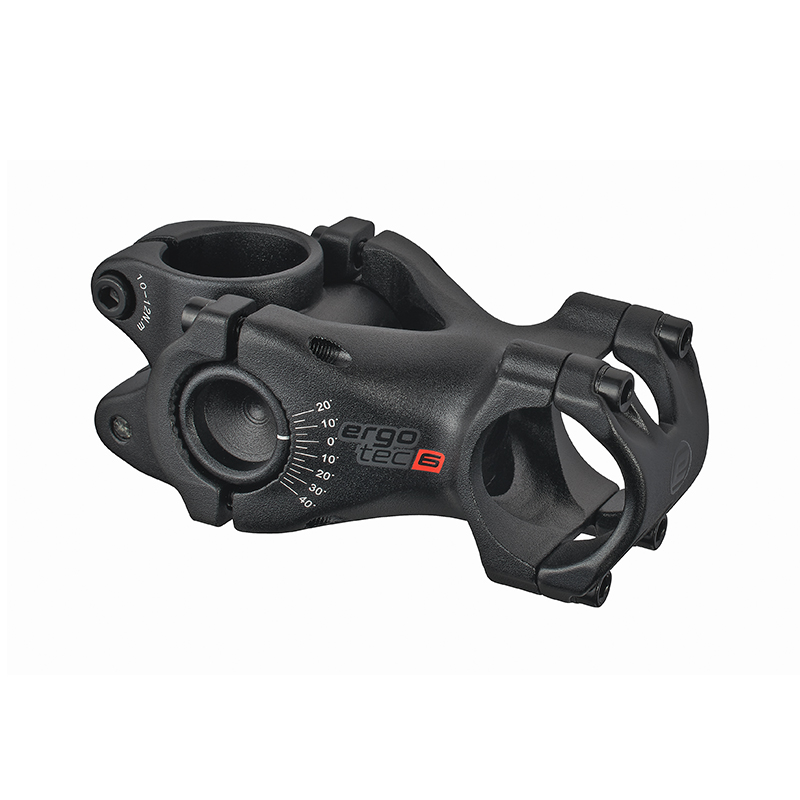

The ergotec SWELL-RE is an angle-adjustable Ahead stem made from 3D-forged AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 31.8 mm clamp diameter. Rated at ergotec Safety Level 6, the stem is intended for the applications approved for this rating. The adjustment range from −20° to +40° allows the handlebar position to be adapted individually and can support either a sportier or a more upright riding position. The SWELL-RE is available with extensions of 80, 100, 120 or 140 mm. An optional faceplate allows compatible headlights or mini cameras from various manufacturers to be mounted on the front of the stem. >>Stem accessories Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40276001 31,8 mm AL 6061 T6 28,6 mm 80 mm 45 mm
Artikel-Nr.: 40276001 clamp: 31,8 mm
safety level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 80 mm
clamp height: 45 mm angle: -20 - +40°
actual height gain: -25/0/40 actual length gain: 70/80/65
finish: black sandblasted weight: ~280 g
EAN: 4016538081417 RRP: 59,95€
add to notes 40277001 31,8 mm AL 6061 T6 28,6 mm 100 mm 45 mm
Artikel-Nr.: 40277001 clamp: 31,8 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 100 mm
clamp height: 45 mm angle: -20 - +40°
actual height gain: -30/0/55 actual length gain: 90/100/80
finish: black sandblasted weight: ~295 g
EAN: 4016538081486 RRP: 59,95€
add to notes 40278001 31,8 mm AL 6061 T6 28,6 mm 120 mm 45 mm
Artikel-Nr.: 40278001 clamp: 31,8 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 120 mm
clamp height: 45 mm angle: -20 - +40°
actual height gain: -55/0/65 actual length gain: 100/120/95
finish: black sandblasted weight: ~320 g
EAN: 4016538081820 RRP: 59,95€
add to notes 40279001 31,8 mm AL 6061 T6 28,6 mm 140 mm 45 mm
Artikel-Nr.: 40279001 clamp: 31,8 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 140 mm
clamp height: 45 mm angle: -20 - +40°
actual height gain: -45/0/80 actual length gain: 130/140/110
finish: black sandblasted weight: ~325 g
EAN: 4016538091706 RRP: 59,95€
