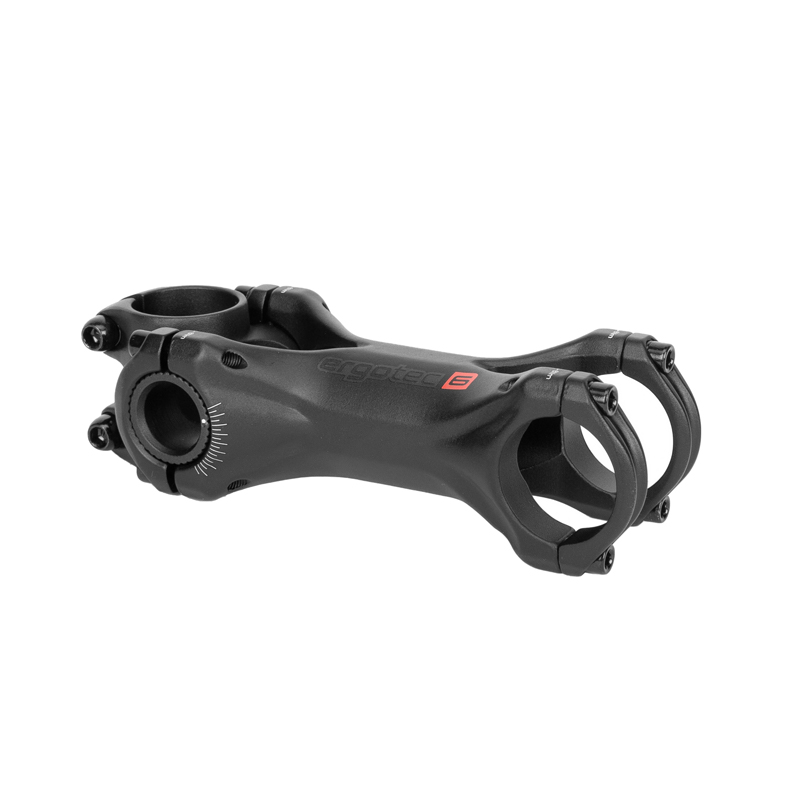

The ergotec SWELL-X is an angle-adjustable Ahead stem made from AL 6061 T6 aluminium. It features a 31.8 mm handlebar clamp diameter and is rated at ergotec Safety Level 6. Its adjustment range from −20° to +40° allows the handlebar height and reach to be adapted to the desired riding position. Depending on the selected setting, the stem can support either a sportier or a more upright riding position. The SWELL-X is available with an extension of 100 or 120 mm. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | clamp height | more | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 40254001 |  |
31,8 mm | AL 6061 T6 | 28,6 mm | 100 mm | 45 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 40257101 | |
31,8 mm | AL 6061 T6 | 28,6 mm | 120 mm | 45 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
