Octopus 2/ 31,8

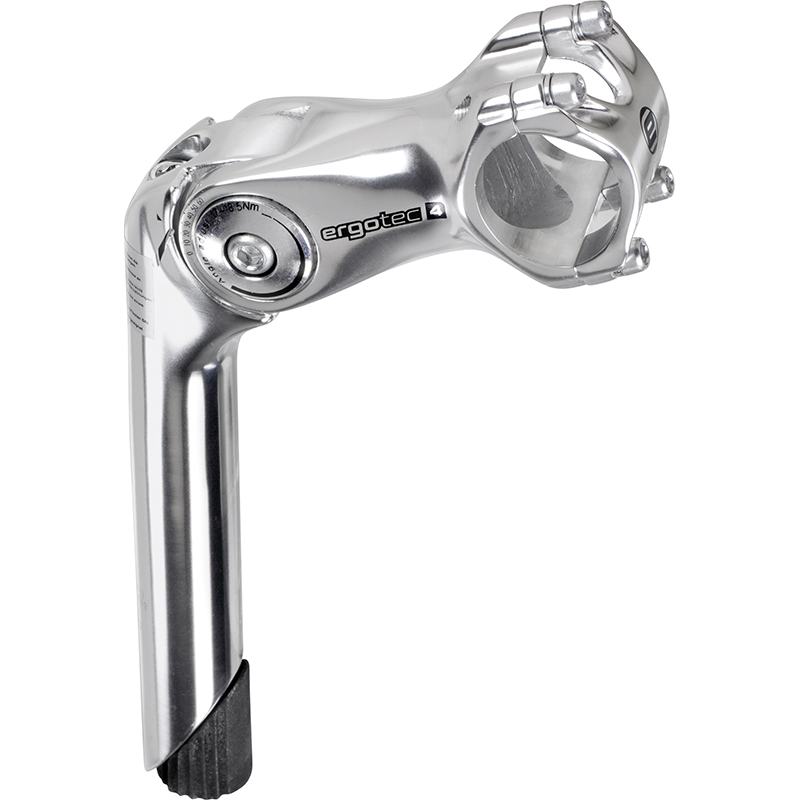

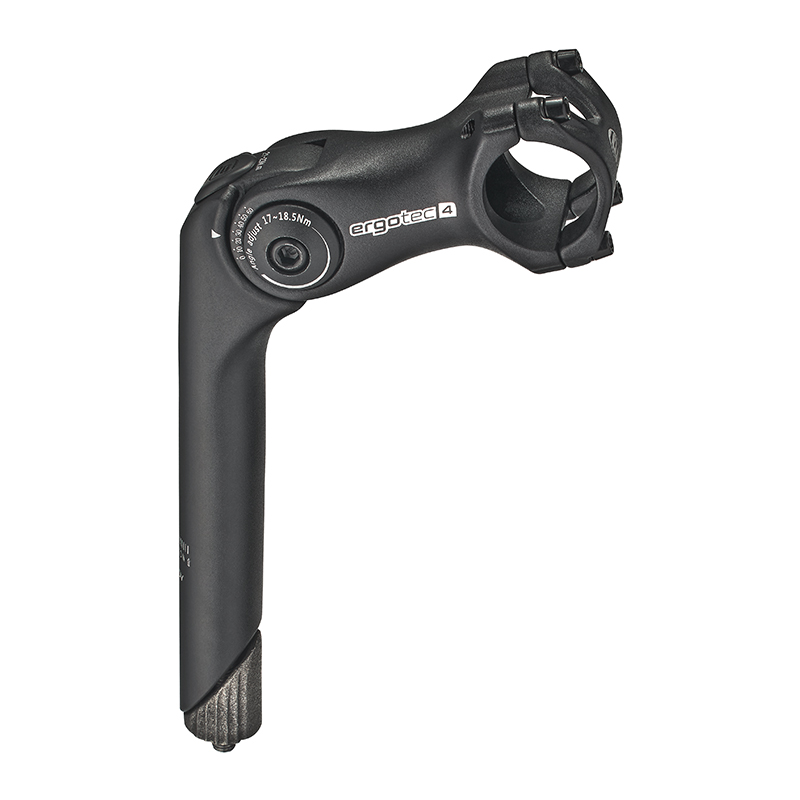

The ergotec OCTOPUS 2 is a 3D-forged quill stem made from AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 31.8 mm clamp diameter. The angle can be adjusted from 0° to +60°, allowing the handlebar position to be adapted individually. The stem is available with extensions of 60, 90 or 110 mm and has a quill length of 180 mm. It is designed for a steerer tube diameter of 25.4 mm. The OCTOPUS 2 is rated at ergotec Safety Level 4. An optional faceplate allows compatible headlights or mini cameras from various manufacturers to be mounted on the stem. >>Stem accessories Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension quill length more
add to notes 33320001 31,8 mm AL 6061 T6 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33320001 clamp: 31,8 mm
safety level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 105/170 actual length gain: 90/60
finish: silver polish weight: ~446 g
EAN: 4016538089987 RRP: 40,95€
add to notes 33321001 31,8 mm AL 6061 T6 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33321001 clamp: 31,8 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 105/170 actual length gain: 90/60
finish: black sandblasted weight: ~442 g
EAN: 4016538085514 RRP: 40,95€
add to notes 33323001 31,8 mm AL 6061 T6 25,4 mm 110 mm 180 mm
Artikel-Nr.: 33323001 clamp: 31,8 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 110 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 110/190 actual length gain: 105/70
finish: black sandblasted weight: ~450 g
EAN: 4016538089390 RRP: 40,95€
add to notes 33328001 31,8 mm AL 6061 T6 25,4 mm 60 mm 180 mm
Artikel-Nr.: 33328001 clamp: 31,8 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 60 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 100/150 actual length gain: 60/40
finish: silver polish weight: ~412 g
EAN: 4016538106257 RRP: 40,95€
add to notes 33329001 31,8 mm AL 6061 T6 25,4 mm 60 mm 180 mm
Artikel-Nr.: 33329001 clamp: 31,8 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 60 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 100/150 actual length gain: 60/40
finish: black sandblasted weight: ~415 g
EAN: 4016538106271 RRP: 40,95€

On the watchlist? Please mark this product.
