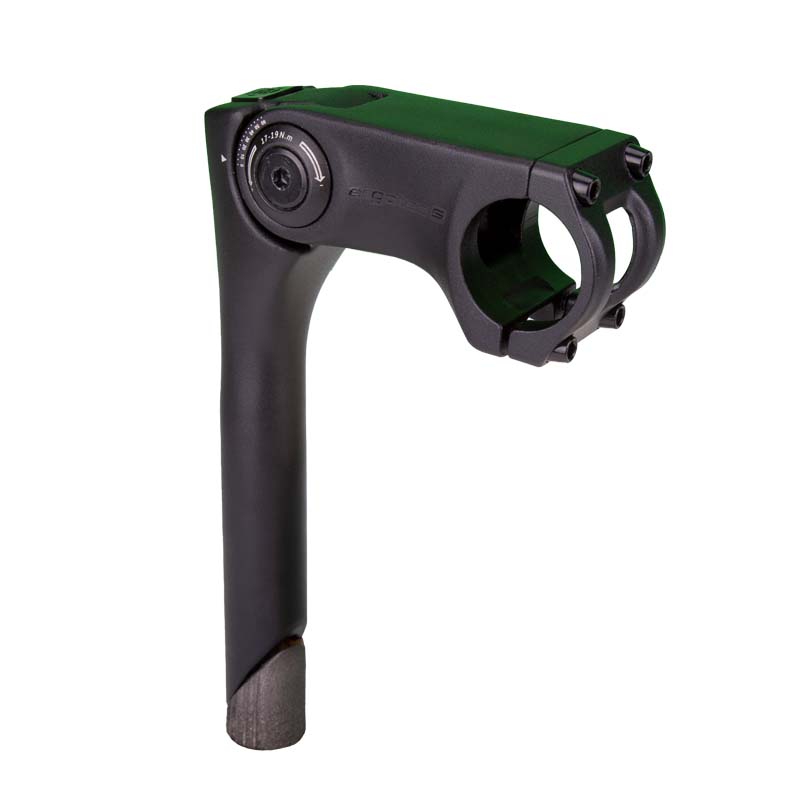

The ergotec SEPIA XL is an angle-adjustable quill stem made from AL 6061 T6 aluminium. Its handlebar clamp is designed for handlebars with a 31.8 mm clamp diameter. The angle can be adjusted from 0° to +60°, allowing the handlebar position to be adapted as required. The stem is available with extensions of 70, 90 or 110 mm and has a quill length of 180 mm. It is designed for a steerer tube diameter of 25.4 mm. The SEPIA XL is rated at ergotec Safety Level 5. Its design follows the lines of modern bicycle frames and helps create a visually cohesive cockpit. Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | quill length | more | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 33401101 |  |
31,8 mm | AL 6061 T6 | 25,4 mm | 90 mm | 180 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 33402101 | |
31,8 mm | AL 6061 T6 | 25,4 mm | 110 mm | 180 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 33400101 | |
31,8 mm | AL 6061 T6 | 25,4 mm | 70 mm | 180 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
