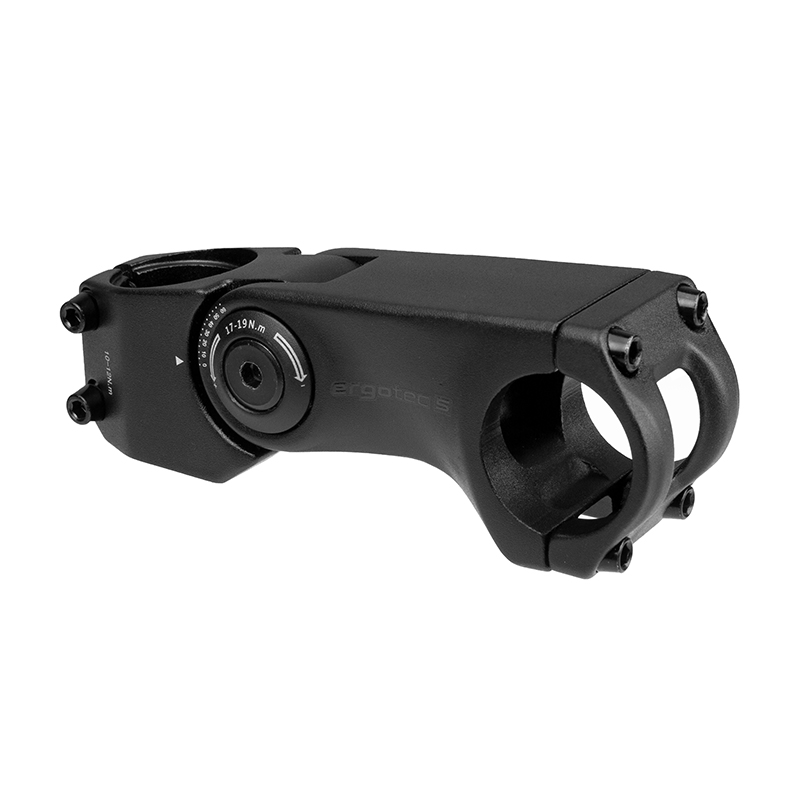

The ergotec SEPIA AHEAD XL 31.8 is an angle-adjustable Ahead stem made from AL 6061 T6 aluminium. Its adjustment range from 0° to +60° allows the handlebar position to be adapted to the desired riding position. The stem’s lines are designed to complement modern bicycle and cockpit designs. Together with the black sandblasted finish, this creates a clean, understated appearance. The SEPIA AHEAD XL features a 31.8 mm handlebar clamp diameter and is rated at ergotec Safety Level 5. It is available with extensions of 80, 100 and 120 mm. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | clamp height | more | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 40047101 |  |
31,8 mm | AL 6061 T6 | 28,6 mm | 100 mm | 40 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 40048101 | |
31,8 mm | AL 6061 T6 | 28,6 mm | 120 mm | 40 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 40046101 | |
31,8 mm | AL 6061 T6 | 28,6 mm | 80 mm | 40 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
