Eagle 2/ 25,4

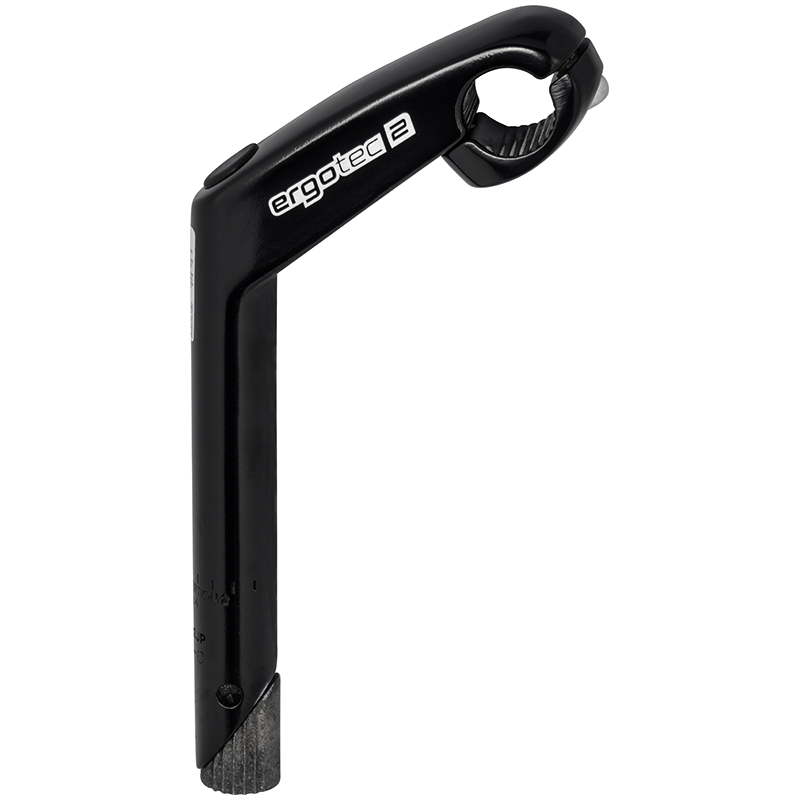

The ergotec EAGLE 2 is an aluminium quill stem made from AL 356 T6. Its two-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. The stem has an 80 mm extension, a 35° angle and a quill length of 180 mm. The EAGLE 2 is rated at ergotec Safety Level 2 and, depending on the version, is available for steerer tube diameters of 22.2 or 25.4 mm. The black and silver finishes allow the stem to be matched to different bicycle designs. Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension quill length more
add to notes 39601001 25,4 mm AL 356 22,2 mm 80 mm 180 mm
Artikel-Nr.: 39601001 clamp: 25,4 mm
safety level 2 material: AL 356
fork clamp: 22,2 mm extension: 80 mm
quill length: 180 mm angle: 35°
actual height gain: 150 actual length gain: 75
finish: black weight: ~424 g
EAN: 4016538080106 RRP: 18,95€
add to notes 39600001 25,4 mm AL 356 22,2 mm 80 mm 180 mm
Artikel-Nr.: 39600001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 22,2 mm extension: 80 mm
quill length: 180 mm angle: 35°
actual height gain: 150 actual length gain: 75
finish: silver weight: ~450 g
EAN: 4016538080090 RRP: 18,95€
add to notes 39606001 25,4 mm AL 356 25,4 mm 80 mm 180 mm
Artikel-Nr.: 39606001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 80 mm
quill length: 180 mm angle: 35°
actual height gain: 150 actual length gain: 75
finish: black weight: ~466 g
EAN: 4016538094950 RRP: 18,95€
add to notes 39605001 25,4 mm AL 356 25,4 mm 80 mm 180 mm
Artikel-Nr.: 39605001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 80 mm
quill length: 180 mm angle: 35°
actual height gain: 150 actual length gain: 75
finish: silver weight: ~460 g
EAN: 4016538094943 RRP: 18,95€
