Octopus 2/ 25,4

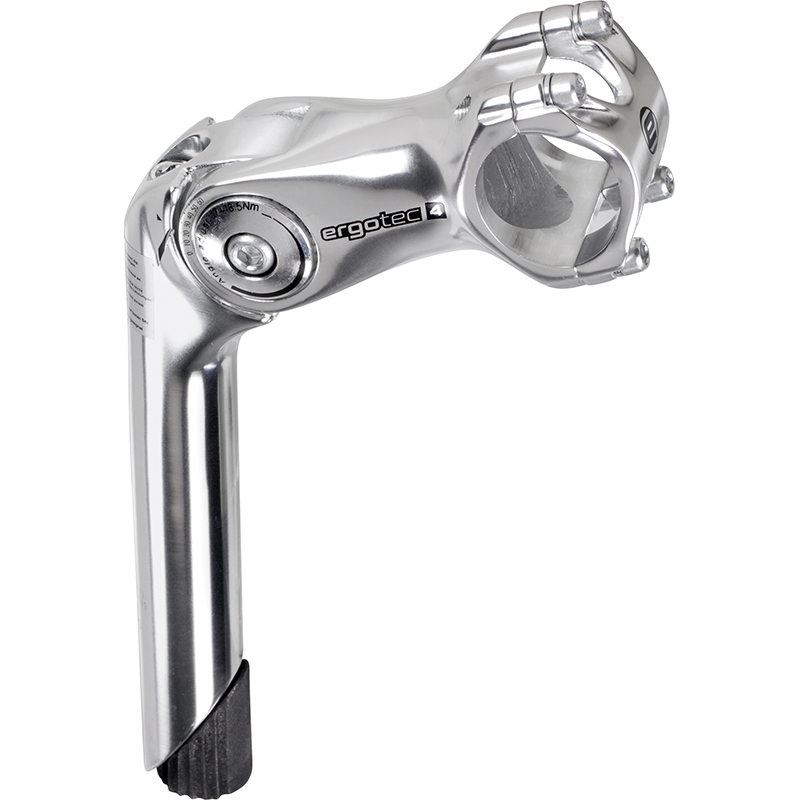

The ergotec OCTOPUS 2 is a 3D-forged quill stem made from AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. The angle can be adjusted from 0° to +60°, allowing the handlebar position to be adapted individually. The stem is available with extensions of 90 or 110 mm and has a quill length of 180 mm. It is designed for a steerer tube diameter of 25.4 mm. The OCTOPUS 2 is rated at ergotec Safety Level 4. Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension quill length more
add to notes 33310001 25,4 mm AL 6061 T6 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33310001 clamp: 25,4 mm
safety level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 105/170 actual length gain: 90/60
finish: silver polish weight: ~438 g
EAN: 4016538087525 RRP: 40,95€
add to notes 33311001 25,4 mm AL 6061 T6 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33311001 clamp: 25,4 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 105/170 actual length gain: 90/60
finish: black sandblasted weight: ~440 g
EAN: 4016538087419 RRP: 40,95€
add to notes 33306001 25,4 mm AL 6061 T6 25,4 mm 110 mm 180 mm
Artikel-Nr.: 33306001 clamp: 25,4 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 110 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 110/190 actual length gain: 105/70
finish: silver polish weight: ~452 g
EAN: 4016538087518 RRP: 40,95€
add to notes 33308001 25,4 mm AL 6061 T6 25,4 mm 110 mm 180 mm
Artikel-Nr.: 33308001 clamp: 25,4 mm
safety Level 4 material: AL 6061 T6
fork clamp: 25,4 mm extension: 110 mm
quill length: 180 mm angle: 0 - +60°
actual height gain: 110/190 actual length gain: 105/70
finish: black sandblasted weight: ~448 g
EAN: 4016538080748 RRP: 40,95€
