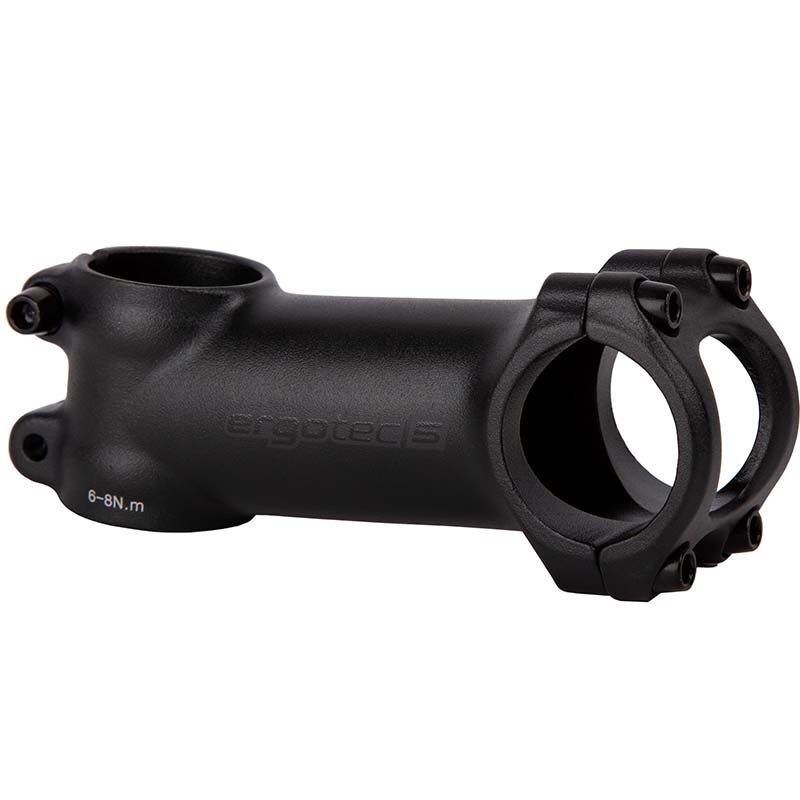

Shark/ 31,8

The ergotec SHARK is an Ahead stem made from 3D-forged AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 31.8 mm clamp diameter. Rated at ergotec Safety Level 5, the stem is intended for the applications approved for this rating. The fixed 7° angle and available extensions of 70, 90 or 110 mm allow the version to be selected to suit the bicycle and the desired handlebar position. An optional faceplate allows compatible headlights or mini cameras from various manufacturers to be mounted on the front of the stem. >>Stem accessories Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40551001 31,8 mm AL 6061 T6 28,6 mm 90 mm 41 mm
Artikel-Nr.: 40551001 clamp: 31,8 mm
safety level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 41 mm angle: 7°
actual height gain: 10 actual length gain: 85
finish: black sandblasted weight: ~144 g
EAN: 4016538107292 RRP: 24,95€
add to notes 40551101 31,8 mm AL 6061 T6 28,6 mm 90 mm 41 mm
Artikel-Nr.: 40551101 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 41 mm angle: 7°
actual height gain: 10 actual length gain: 85
finish: silver polish weight: ~120 g
EAN: 4016538107308 RRP: 27,95€
add to notes 40550501 31,8 mm AL 6061 T6 28,6 mm 70 mm 41 mm
Artikel-Nr.: 40550501 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 70 mm
clamp height: 41 mm angle: 7°
actual height gain: 5 actual length gain: 65
finish: black sandblasted weight: ~100 g
EAN: 4016538119714 RRP: 24,95€
add to notes 40552101 31,8 mm AL 6061 T6 28,6 mm 110 mm 41 mm
Artikel-Nr.: 40552101 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 41 mm angle: 7°
actual height gain: 15 actual length gain: 105
finish: silver polish weight: ~144 g
EAN: 4016538107322 RRP: 27,95€
add to notes 40552001 31,8 mm AL 6061 T6 28,6 mm 110 mm 41 mm
Artikel-Nr.: 40552001 clamp: 31,8 mm
safety Level 5 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 41 mm angle: 7°
actual height gain: 15 actual length gain: 105
finish: black sandblasted weight: ~143 g
EAN: 4016538107315 RRP: 24,95€

On the watchlist? Please mark this product.
