Ray/ 35,0

The ergotec RAY is an Ahead stem made from 3D-forged AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 35.0 mm clamp diameter. The stem is rated at ergotec Safety Level 6. The versions with 35 or 55 mm extension feature a 0° angle. The 70, 90 and 110 mm versions have a −7° angle, allowing a correspondingly lower handlebar position. An optional faceplate is available for the 70, 90 and 110 mm versions. Compatible headlights or mini cameras from various manufacturers can be mounted to this faceplate. >>Stem accessories Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more

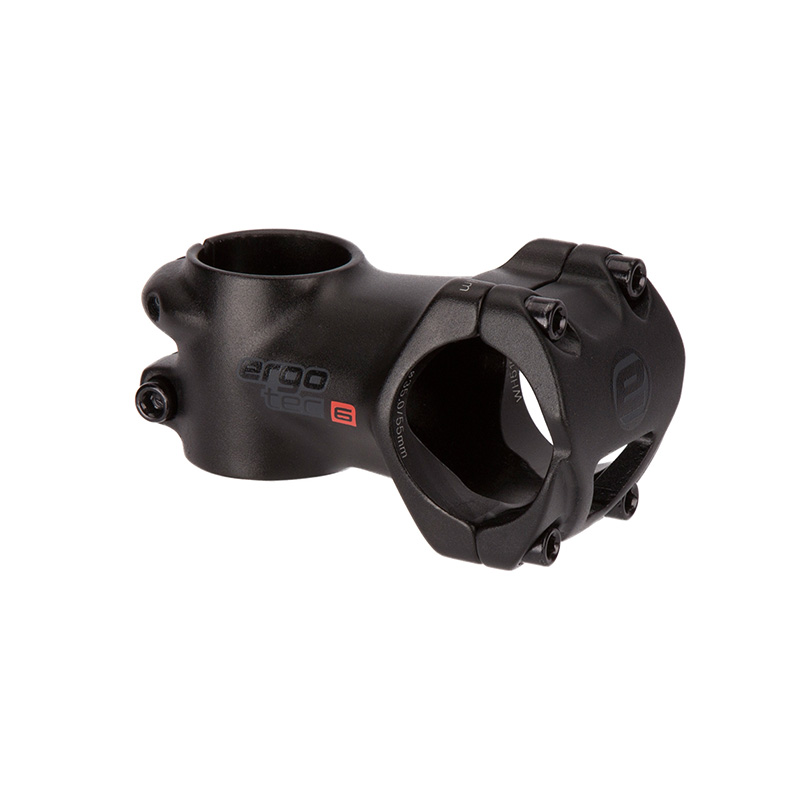

add to notes 40860001 35,0 mm AL 6061 T6 28,6 mm 35 mm 40 mm
Artikel-Nr.: 40860001 clamp: 35,0 mm
safety level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 35 mm
clamp height: 40 mm angle: 0°
actual length gain: 35 finish: black sandblasted
weight: ~120 g EAN: 4016538098309
RRP: 56,95€
add to notes 40862001 35,0 mm AL 6061 T6 28,6 mm 55 mm 40 mm
Artikel-Nr.: 40862001 clamp: 35,0 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 55 mm
clamp height: 40 mm angle: 0°
actual length gain: 55 finish: black sandblasted
weight: ~146 g EAN: 4016538098323
RRP: 56,95€
add to notes 40870001 35,0 mm AL 6061 T6 28,6 mm 70 mm 40 mm
Artikel-Nr.: 40870001 clamp: 35,0 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 70 mm
clamp height: 40 mm angle: -7°
actual height gain: -5 actual length gain: 65
finish: black sandblasted weight: ~132 g
EAN: 4016538098248 RRP: 56,95€
add to notes 40872001 35,0 mm AL 6061 T6 28,6 mm 90 mm 40 mm
Artikel-Nr.: 40872001 clamp: 35,0 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 40 mm angle: -7°
actual height gain: -10 actual length gain: 85
finish: black sandblasted weight: ~152 g
EAN: 4016538098262 RRP: 56,95€

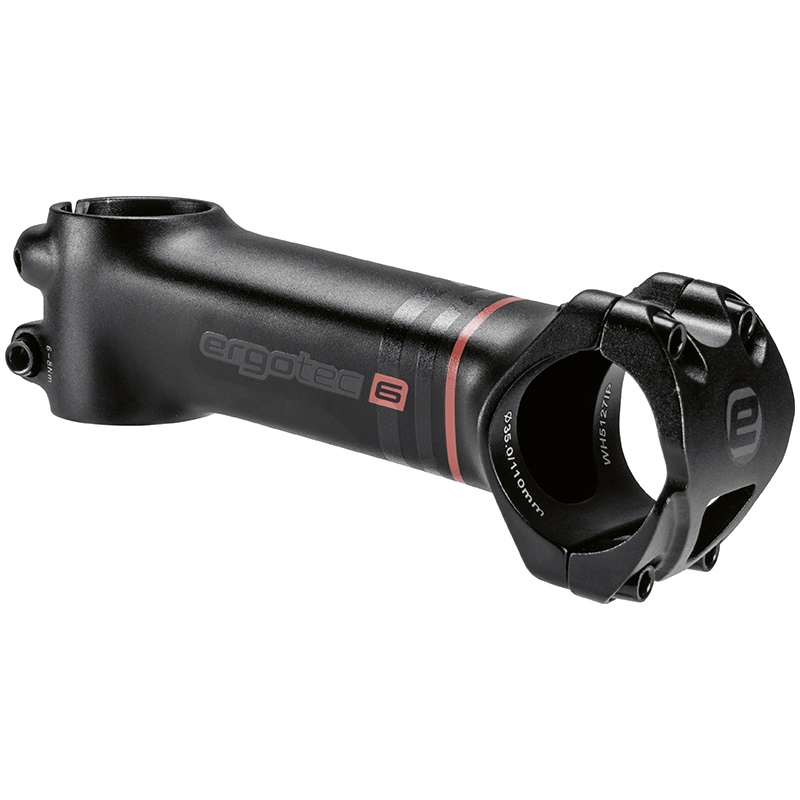

add to notes 40873001 35,0 mm AL 6061 T6 28,6 mm 110 mm 40 mm
Artikel-Nr.: 40873001 clamp: 35,0 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 40 mm angle: -7°
actual height gain: -15 actual length gain: 105
finish: black sandblasted weight: ~162 g
EAN: 4016538098286 RRP: 56,95€
