Kobra Vario/ 25,4

The ergotec KOBRA VARIO is an angle-adjustable aluminium quill stem. Its three-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. The angle can be adjusted from −10° to +50°, allowing the handlebar position to be adapted to different requirements. The stem is available with extensions of 90 or 110 mm and has a quill length of 180 mm. Depending on the version, it is designed for a steerer tube diameter of 22.2 or 25.4 mm. The KOBRA VARIO is rated at ergotec Safety Level 2. Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension quill length more

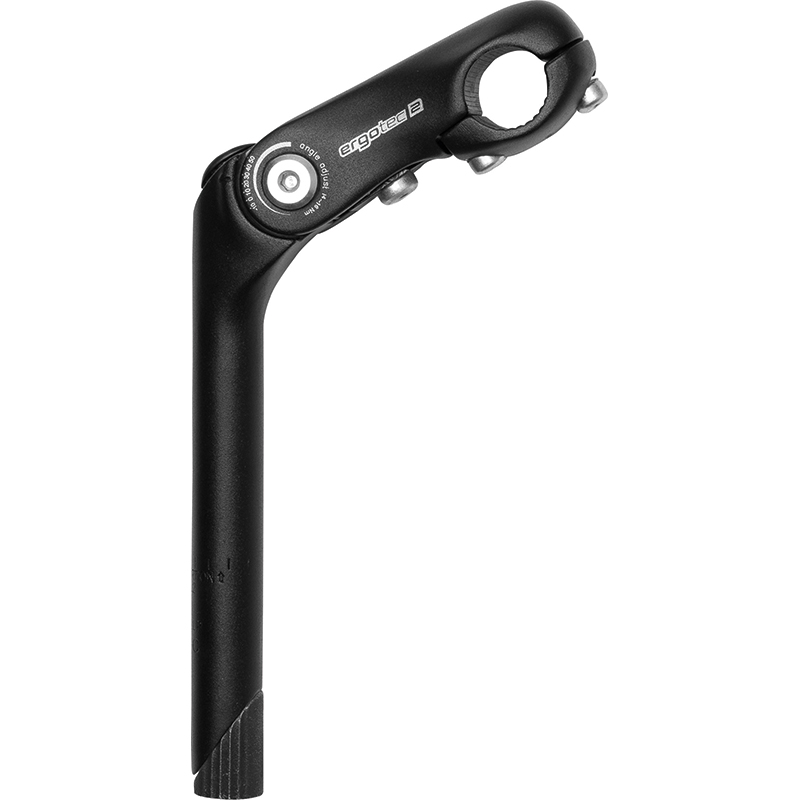

add to notes 33622001 25,4 mm AL 356 22,2 mm 90 mm 180 mm
Artikel-Nr.: 33622001 clamp: 25,4 mm
safety level 2 material: AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/170 actual length gain: 85/90/70
finish: black sandblasted weight: ~544 g
EAN: 4016538085170 RRP: 28,95€
add to notes 33620001 25,4 mm AL 356 22,2 mm 90 mm 180 mm
Artikel-Nr.: 33620001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/170 actual length gain: 85/90/70
finish: silver weight: ~540 g
EAN: 4016538094677 RRP: 28,95€
add to notes 33621001 25,4 mm AL 356 22,2 mm 90 mm 180 mm
Artikel-Nr.: 33621001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 22,2 mm extension: 90 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/170 actual length gain: 85/90/70
finish: black weight: ~550 g
EAN: 4016538094684 RRP: 28,95€
add to notes 33623001 25,4 mm AL 356 22,2 mm 110 mm 180 mm
Artikel-Nr.: 33623001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 22,2 mm extension: 110 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/190 actual length gain: 105/110/90
finish: silver weight: ~574 g
EAN: 4016538087037 RRP: 28,95€
add to notes 33624001 25,4 mm AL 356 22,2 mm 110 mm 180 mm
Artikel-Nr.: 33624001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 22,2 mm extension: 110 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/190 actual length gain: 105/110/90
finish: black weight: ~580 g
EAN: 4016538094707 RRP: 28,95€
add to notes 33625001 25,4 mm AL 356 22,2 mm 110 mm 180 mm
Artikel-Nr.: 33625001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 22,2 mm extension: 110 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/190 actual length gain: 105/110/90
finish: black sandblasted weight: ~580 g
EAN: 4016538083169 RRP: 28,95€
add to notes 33650001 25,4 mm AL 356 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33650001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/170 actual length gain: 85/90/70
finish: silver weight: ~562 g
EAN: 4016538081714 RRP: 28,95€
add to notes 33651001 25,4 mm AL 356 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33651001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/170 actual length gain: 85/90/70
finish: black weight: ~574 g
EAN: 4016538083121 RRP: 28,95€
add to notes 33652001 25,4 mm AL 356 25,4 mm 90 mm 180 mm
Artikel-Nr.: 33652001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 90 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/170 actual length gain: 85/90/70
finish: black sandblasted weight: ~578 g
EAN: 4016538083237 RRP: 28,95€

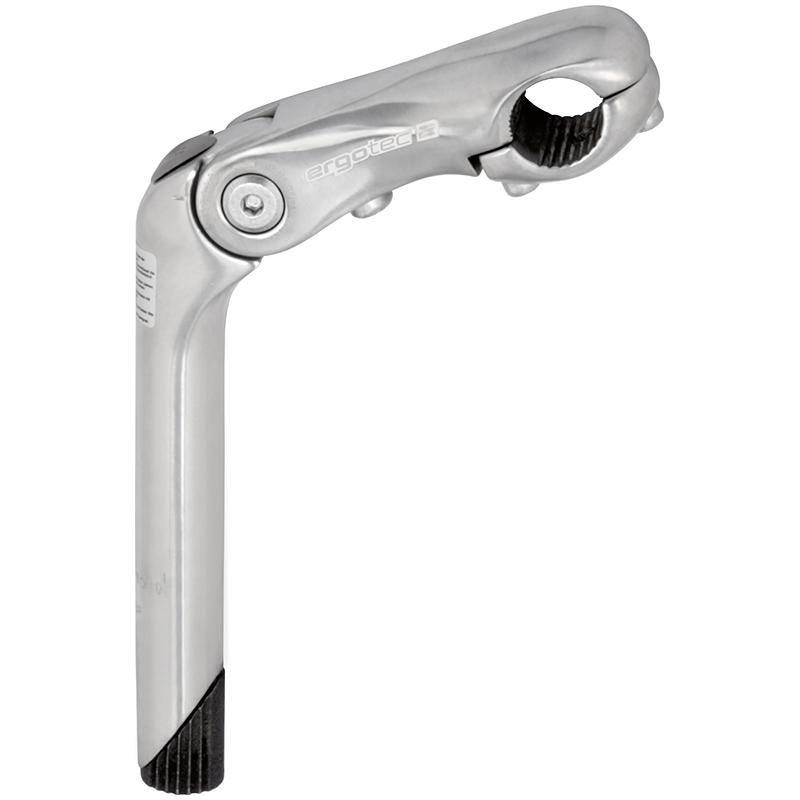

add to notes 33655001 25,4 mm AL 356 25,4 mm 110 mm 180 mm
Artikel-Nr.: 33655001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/190 actual length gain: 105/110/90
finish: silver weight: ~600 g
EAN: 4016538091287 RRP: 28,95€
add to notes 33656001 25,4 mm AL 356 25,4 mm 110 mm 180 mm
Artikel-Nr.: 33656001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/190 actual length gain: 105/110/90
finish: black weight: ~604 g
EAN: 4016538081721 RRP: 28,95€
add to notes 33657001 25,4 mm AL 356 25,4 mm 110 mm 180 mm
Artikel-Nr.: 33657001 clamp: 25,4 mm
safety Level 2 material: AL 356
fork clamp: 25,4 mm extension: 110 mm
quill length: 180 mm angle: -10 - +50°
actual height gain: 100/115/190 actual length gain: 105/110/90
finish: black sandblasted weight: ~612 g
EAN: 4016538092543 RRP: 28,95€
