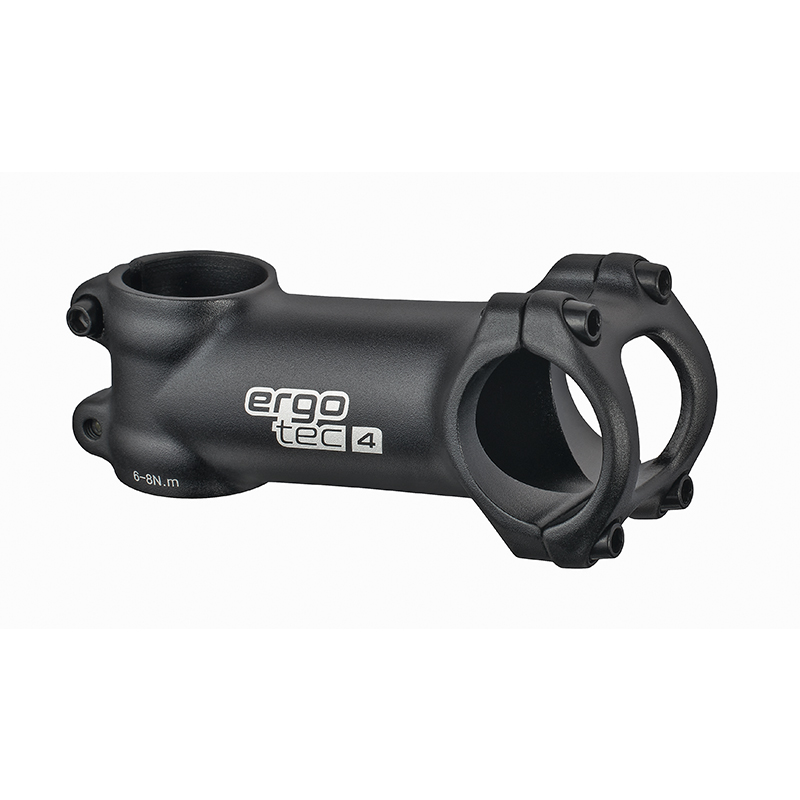

The ergotec CRAB 2 is an Ahead stem made from 3D-forged AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. The stem is rated at ergotec Safety Level 4. The fixed 7° angle determines the handlebar position and can support a slightly higher handlebar setup. Depending on the bicycle geometry and the selected extension length, the cockpit position can be adjusted accordingly. The CRAB 2 is available with extensions of 70, 90 or 110 mm. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | clamp height | more | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 40102001 |  |
25,4 mm | AL 6061 T6 | 28,6 mm | 70 mm | 41 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 40110101 | |
25,4 mm | AL 6061 T6 | 28,6 mm | 90 mm | 41 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 40111101 | |
25,4 mm | AL 6061 T6 | 28,6 mm | 110 mm | 41 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
