Pike 2/ 25,4

The ergotec PIKE 2 is an Ahead stem made from 3D-forged AL 6061 T6 aluminium. The four-bolt handlebar clamp is designed for handlebars with a 25.4 mm clamp diameter. Rated at ergotec Safety Level 6, the stem is intended for the applications approved for this rating. Depending on the installation direction, the angle is +6° or −6°. This allows the handlebar position to be set higher or lower and adapted to the desired riding position. The PIKE 2 is available with extensions of 60, 90, 110 or 130 mm. For each application, the approvals for the complete steering system comprising handlebar and stem must be observed. Installation and safety information: The stem must not be combined with a carbon steerer tube or carbon handlebar. Such a combination can result in a risk of breakage.

>>

Artikel-Nr. safety level clamp material fork clamp extension clamp height more
add to notes 40524501 25,4 mm AL 6061 T6 28,6 mm 60 mm 40 mm
Artikel-Nr.: 40524501 clamp: 25,4 mm
safety level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 60 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 10/-5 actual length gain: 60/60
finish: black sandblasted weight: ~114 g
EAN: 4016538117826 RRP: 44,95€
add to notes 40531001 25,4 mm AL 6061 T6 28,6 mm 90 mm 40 mm
Artikel-Nr.: 40531001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 10/-5 actual length gain: 90/90
finish: silver polish weight: ~129 g
EAN: 4016538073153 RRP: 45,95€

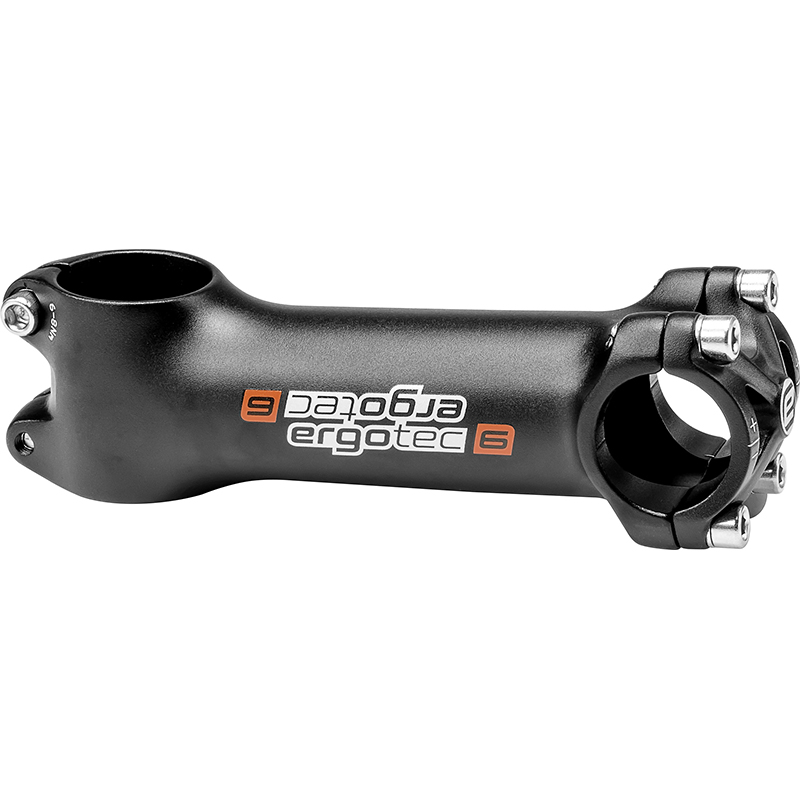

add to notes 40525001 25,4 mm AL 6061 T6 28,6 mm 90 mm 40 mm
Artikel-Nr.: 40525001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 90 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 10/-5 actual length gain: 90/90
finish: black sandblasted weight: ~128 g
EAN: 4016538024896 RRP: 44,95€

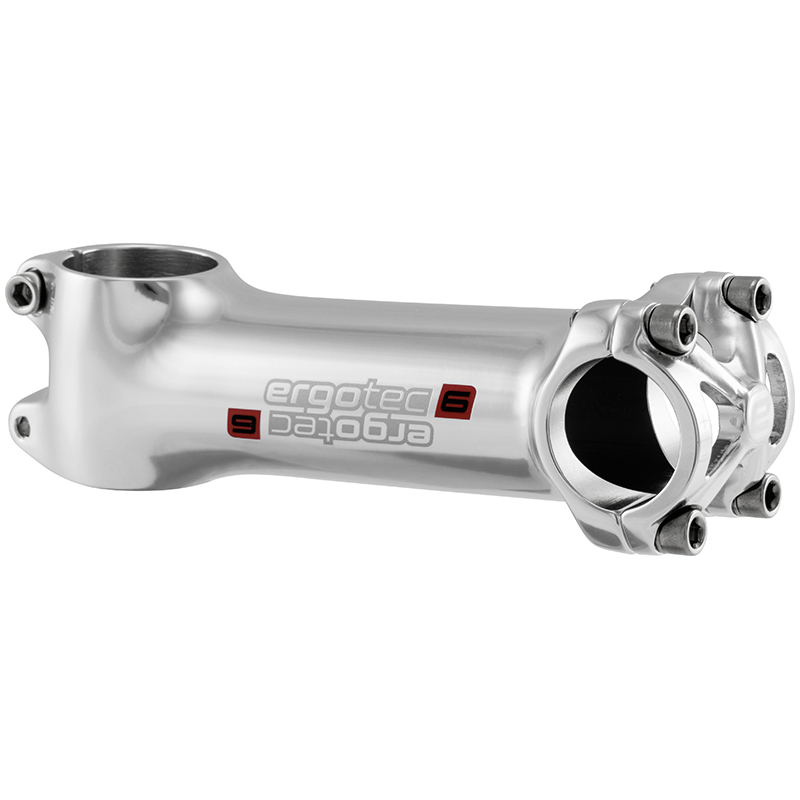

add to notes 40532001 25,4 mm AL 6061 T6 28,6 mm 110 mm 40 mm
Artikel-Nr.: 40532001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 15/-5 actual length gain: 110/110
finish: silver polish weight: ~160 g
EAN: 4016538073160 RRP: 45,95€
add to notes 40527001 25,4 mm AL 6061 T6 28,6 mm 110 mm 40 mm
Artikel-Nr.: 40527001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 110 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 15/-5 actual length gain: 110/110
finish: black sandblasted weight: ~136 g
EAN: 4016538024919 RRP: 44,95€
add to notes 40533001 25,4 mm AL 6061 T6 28,6 mm 130 mm 40 mm
Artikel-Nr.: 40533001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 130 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 15/-5 actual length gain: 130/130
finish: silver polish weight: ~144 g
EAN: 4016538073177 RRP: 45,95€
add to notes 40529001 25,4 mm AL 6061 T6 28,6 mm 130 mm 40 mm
Artikel-Nr.: 40529001 clamp: 25,4 mm
safety Level 6 material: AL 6061 T6
fork clamp: 28,6 mm extension: 130 mm
clamp height: 40 mm angle: +/ -6°
actual height gain: 15/-5 actual length gain: 130/130
finish: black sandblasted weight: ~148 g
EAN: 4016538024933 RRP: 44,95€
