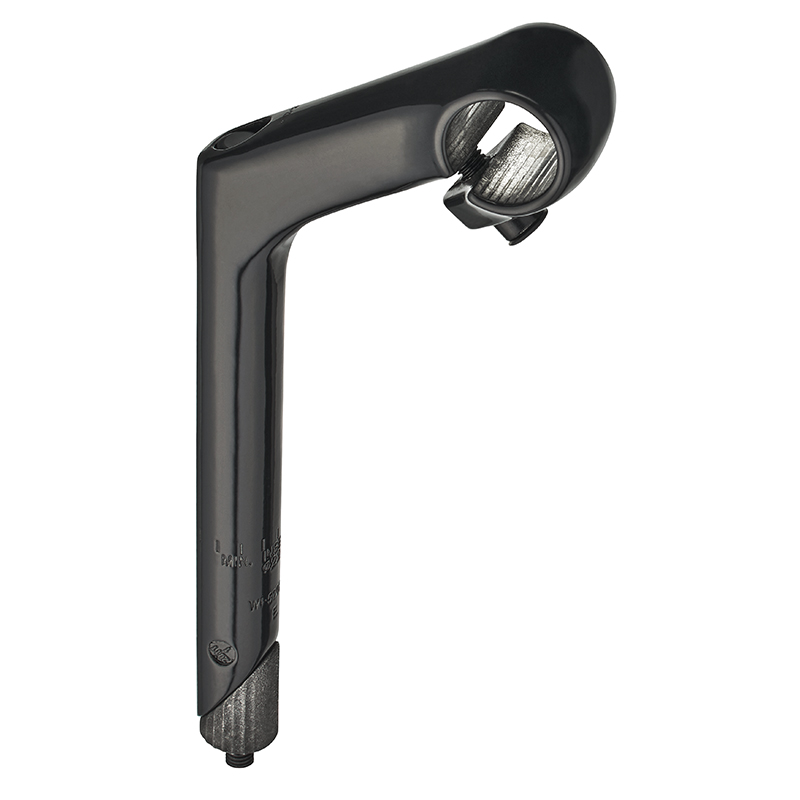

The ergotec EAGLE is a quill stem made from AL 356 T6 aluminium with a single-bolt handlebar clamp for handlebars with a 25.4 mm clamp diameter. Its 30° angle and 80 mm extension define its classic geometry. The stem has a quill length of 180 mm and, depending on the version, is available for steerer tube diameters of 22.2 or 25.4 mm. The EAGLE is rated at ergotec Safety Level 2 and is available in black or silver. Installation and safety information: The stem must not be combined with a carbon handlebar. Such a combination can result in a risk of breakage.
>>
| Artikel-Nr. | safety level | clamp | material | fork clamp | extension | quill length | more | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| add to notes | 39550001 |  |
25,4 mm | AL 356 | 22,2 mm | 80 mm | 180 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 39542001 | |
25,4 mm | AL 356 | 22,2 mm | 80 mm | 180 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| add to notes | 39551001 | |
25,4 mm | AL 356 | 25,4 mm | 80 mm | 180 mm | |||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
